4.2m Light Duty Refrigerated Truck Refrigeration Unit with 16,000 BTU Cooling Capacity and Digital Controller

Name: 42m Light Duty Refrigerated Truck Refrigeration Unit with 16000 BTU Cooling Capacity and Digital Controller
Brand: Newbase
Price: 3000 USD

Wholesale 4.2m Light Duty Refrigerated Truck Refrigeration Unit with 16,000 BTU Cooling Capacity and Digital Controller from china suppliers

Place of Origin : China

Brand Name : Newbase

Delivery Time : 30 days

Payment Terms : T/T

MOQ : 10

Supply Ability : 1000EU/M

Packaging Details : Steel Bracket

Price : USD 3000~15000/unit

Dimensions : 48.5

Compressor Type : Scroll

Cooling Capacity : 16,000 BTU

Power Source : Diesel

Controller Type : Digital

Defrost Type : Hot Gas

Condenser Type : Microchannel

Model : TRU-16

Fuel Consumption : 0.8 gallons per hour

Weight : 350 lbs

Refrigerant Type : R134a

Temperature Range : -20°F to 60°F

Evaporator Type : Fin and Tube

Voltage : 12V

Contact Now

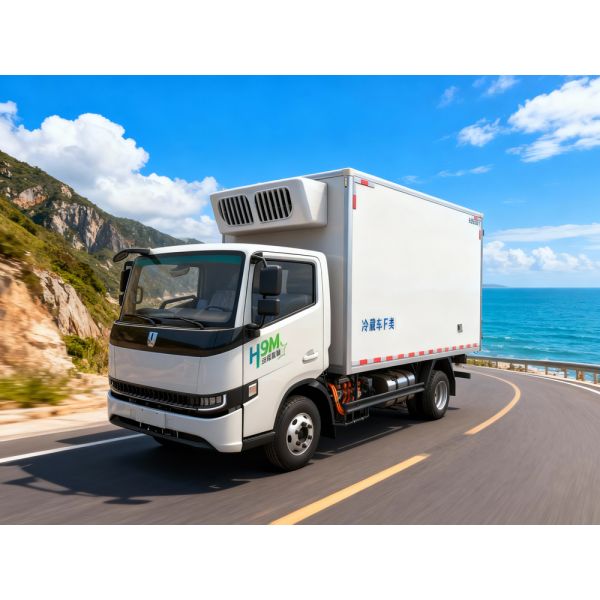

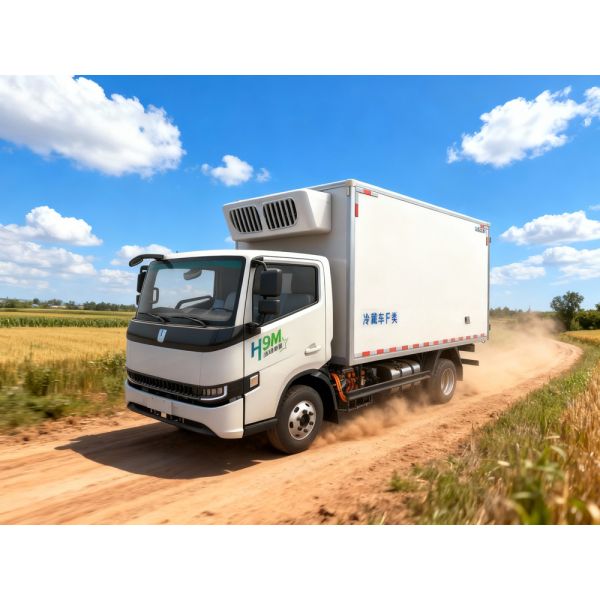

4.2m Refrigerated Truck Refrigeration Unit

The NBESR-1000A all-electric integrated refrigeration unit produced by NEWBASE is suitable for light-duty refrigerated trucks (7.5 - 8.5 meters in length) powered by new energy sources such as pure electricity, hydrogen energy, methanol, and extended-range systems. It is compatible with insulated container bodies with a volume of 42 - 46 cubic meters and can achieve refrigeration temperatures as low as -18°C to -20°C.

The compressor is designed to be installed inside the condenser. Both the condenser and the evaporator adopt an integrated structure. This refrigeration unit features an elegant appearance, rapid cooling speed, low power consumption thanks to frequency conversion control, and safe and reliable operation. Equipped with a built-in 4G module, the unit enables remote proactive after-sales service and temperature regulation control.

The product comes with an AC380V backup power function, allowing refrigeration using an external power source when the vehicle is parked, thus conserving the truck's battery power. Additionally, it is configured with a heating function, capable of achieving heating temperatures ranging from 6°C to 15°C.

Parameters Table

Model	Refrigeration Unit
Applicable Compartment Volume	15-25m³
Temperature Range	-25℃ - +30℃
Refrigeration Capacity	0℃/30℃	5200W
	-20℃/30℃	2800W
High Voltage	DC250V-DC450V(Low Voltage Platform)
	DC380V-DC750V(High Voltage Platform)
Power	0℃/+30℃	2850W
	-20℃/+30℃	2430W
Drive Mode	Pure Electric
Control Voltage	DC12V(9~16V)
	DC24V(16~32V)
Low Voltage Power supply	DC-DC
Standby Power Supply	AC220V/380V(Optional)
Compressor	DTH356(Variable Frequency)
Refrigerant	R404A
Refrigerant Filling Amount	2.3kg
Defrosting Method	Hot Gas
Heating Method	Hot Gas
Control Method	CAN Communication
Condenser Assembly	Size(L * W * H,mm)	1633X485X485
	Weight(kg)	78
Condenser Fan	Numbers(pcs)	2
	Total Air Volume(m3/h)	4000
Evaporator Assembly	Size(L * W * H,mm)	1092X590X241
	Weight(kg)	20
Evaporator Fan	Quantity(个pieces)	2
	Total Air Volume(m3/h)	2000

4.2m Light Duty Refrigerated Truck Refrigeration Unit with 16,000 BTU Cooling Capacity and Digital Controller
